It is driven by compressed air inflation and rebounds automatically when deflated. It has the characteristics of high performance, high precision and high stability. The measuring range is 0-4mm, the repeatability is 1μm, and the outlet modes are straight outlet and side outlet. For objects that require measuring force, such as glass, plastic, film, wafer, etc., pneumatic ultra-light contact displacement sensors can be used to avoid secondary damage to the objects.

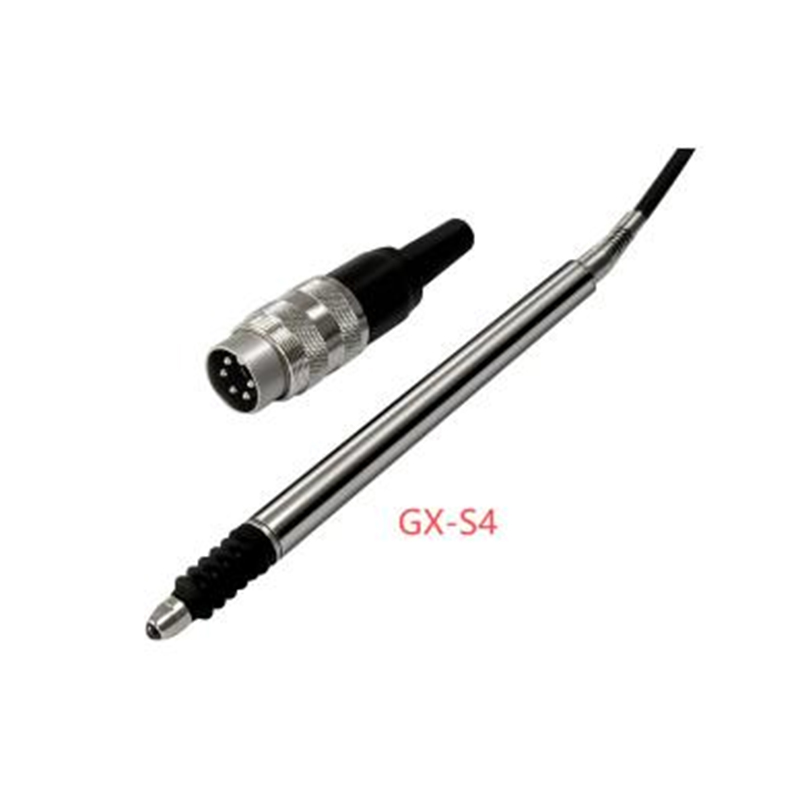

GX-S4 Series |
Supply voltage | 9-28VDC |
Displacement range | 0-4mm |
Repeatability | 1μm |
Full scale absolute linearity | 0.1%F.S or 0.2%F.S optional (plug gauge detection method) |
Output signal | 0-5V, ±5V four-wire system (three-wire system optional) (9~28V DC) | 0-10V four-wire system (three-wire system optional) (15~28V DC) |
0-20mA, 4-20mA four-wire system (two-wire system optional) (15~28V DC) | Modbus RTU RS485 interface/
Four-wire system (12~28V DC)
|
Resolution | Analog: 0.1μm, digital: 1μm |
Operating temperature | 25℃~+85℃ |
Temperature coefficient | <0.01%/℃ |
