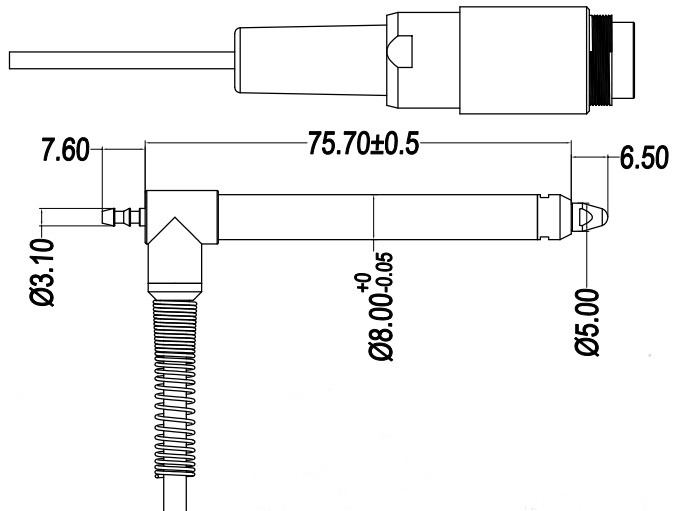

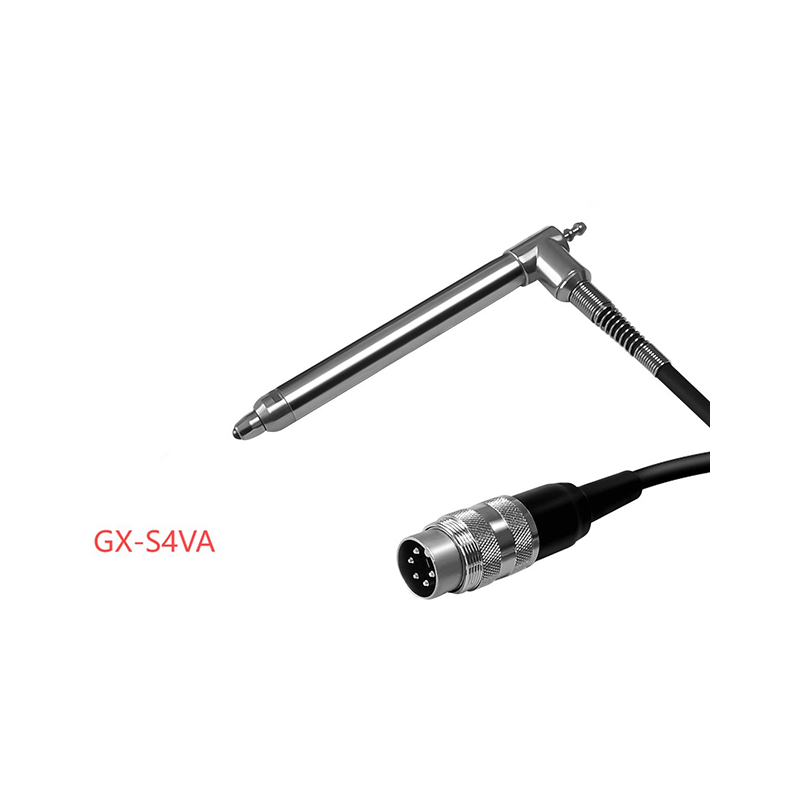

Pneumatic (With Side Exit Cable) High-Precision Contact-Type Displacement Sensor

  GXPS Series

Supply voltage

  9-28VDC

Displacement range

  0-4mm

Full scale absolute linearity

  0.1%F.S or 0.2%F.S optional (plug gauge detection method)

Repeatability

  1μm

Output signal

0~5V, ±5V four-wire system

(three-wire system optional) (9~28V DC)

0~10V, four-wire system

(three-wire system optional) (15~28V DC)

0-20mA, 4-20mA four-wire system
(three-wire system optional) (15~28V DC)

Modbus RTU RS485 interface

Four-wire (12~28V DC)

Air supply pressure

  0.05Mpa~0.1Mpa

Measuring force

  0.2N (under 0.05Mpa air pressure)

Resolution

  Analog: 0.1μm, digital: 1μm

Operating temperature

  25℃~+85℃

Temperature coefficient

  <0.01%/℃
