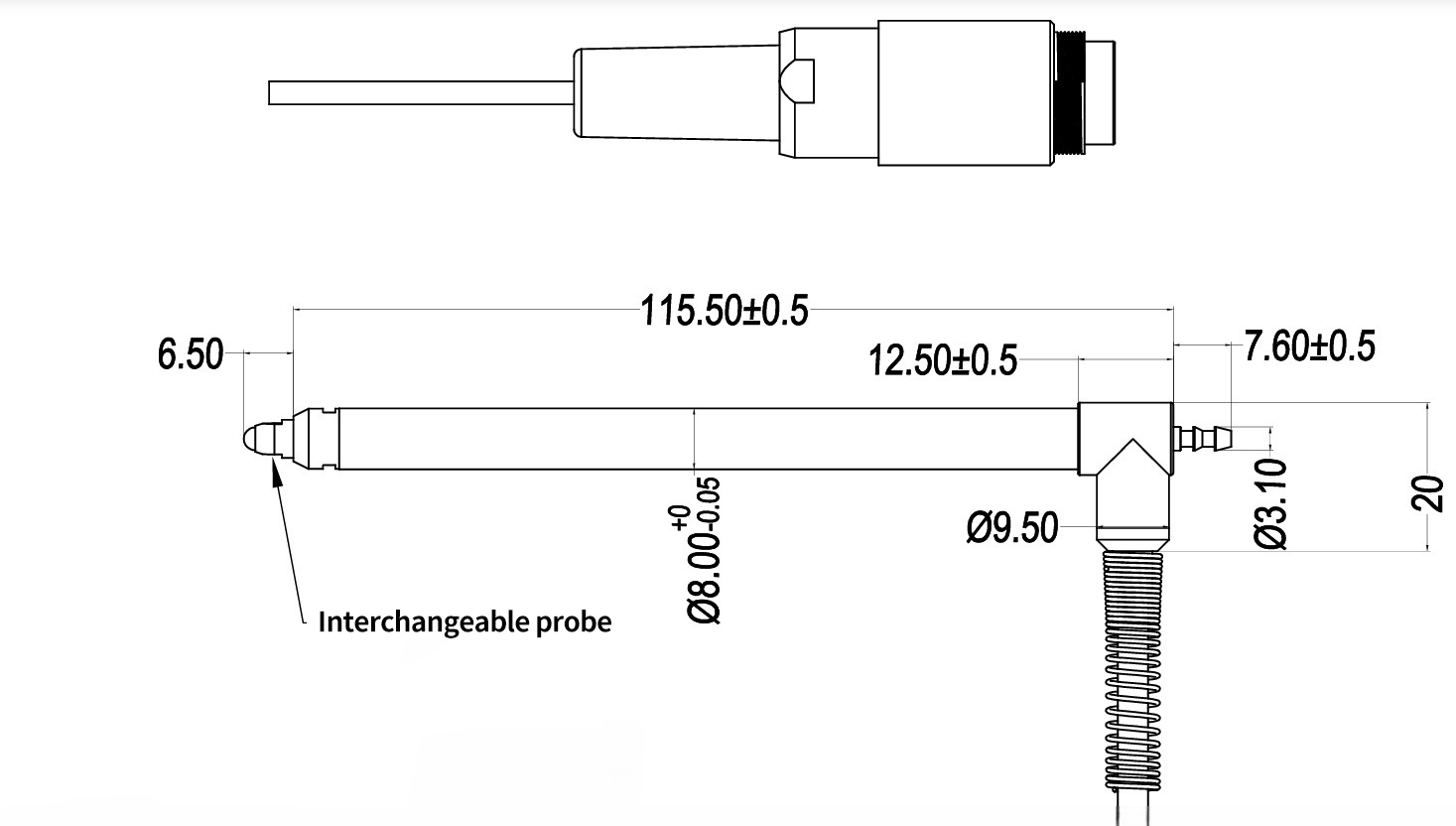

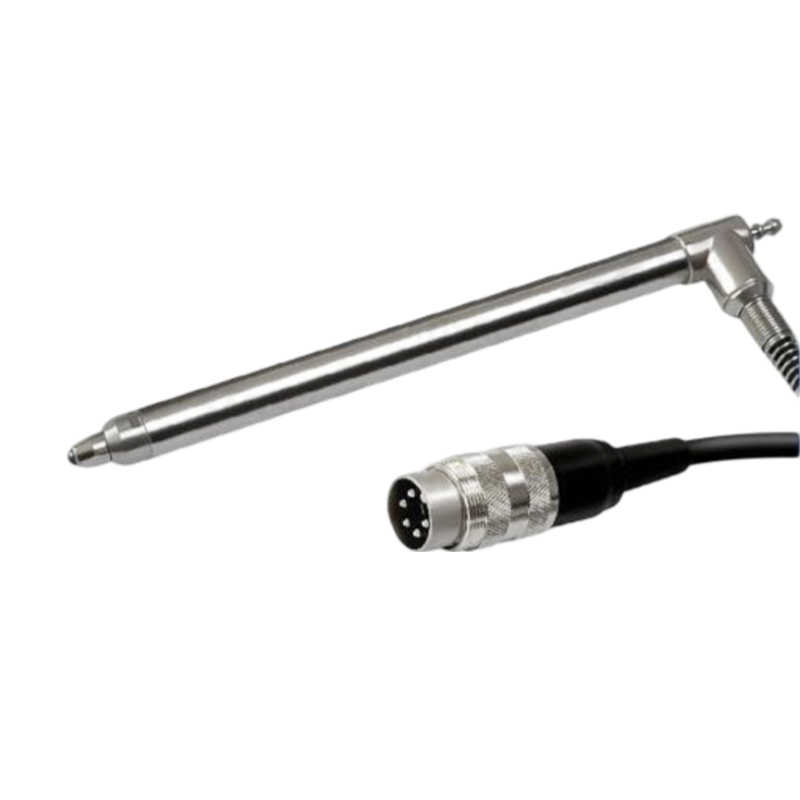

Pneumatic (Side Exit Cable) High-Precision Contact Displacement Sensor

GX-10VA Series

Supply voltage

   9-28VDC

Displacement range

   0-10mm

Full scale absolute linearity

   0.1%F.S or 0.2%F.S optional (plug gauge detection method)

Repeatability

   1μm

Output signal

0~5V, ±5V four-wire system

(three-wire system optional) (9~28V DC)

0~10V, four-wire system

(three-wire system optional) (15~28V DC)

0-20mA, 4-20mA four-wire system
(three-wire system optional) (15~28V DC)

Modbus RTU RS485 interface

Four-wire (12~28V DC)

Air supply pressure

0.05Mpa~0.1Mpa

Measuring force

   0.2N (under 0.05Mpa air pressure)

Resolution

Analog: 0.1μm, digital: 1μm

Operating temperature

25℃~+85℃

Temperature coefficient

<0.01%/℃
