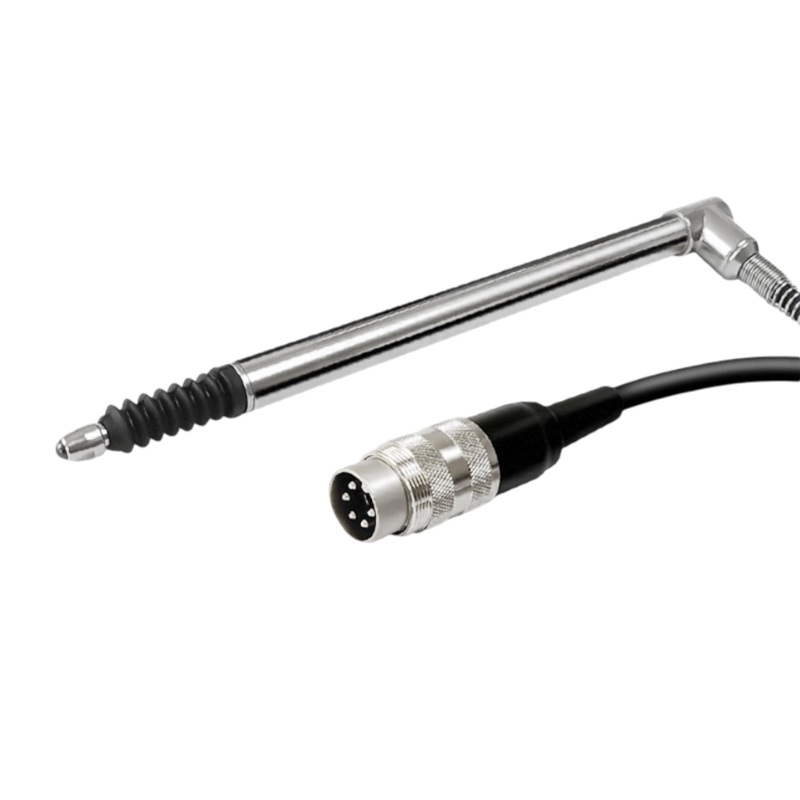

GX-10V Rebound Displacement Sensor | ||
Supply voltage | 9-28VDC | |
Displacement range | 0-10mm | |
Full scale absolute linearity | 0.1%F.S or 0.2%F.S optional (plug gauge detection method) | |
Repeatability | 1μm | |
Output signal | 0-5V, ±5V four-wire system (three-wire system optional)(9-28V DC) | 0-10V four-wire system (three-wire system optional) (15-28V DC) |
0-20mA, 4~20mA four-wire system (two-wire system optional) (15~28V DC) | Modbus RTU RS485 interface Four-wire (12-28V DC) | |
Resolution | Analog: 0.1μm, digital: 1μm | |
Operating temperature | 25℃-+85℃ | |
Temperature coefficient | <0.01%/℃ | |
